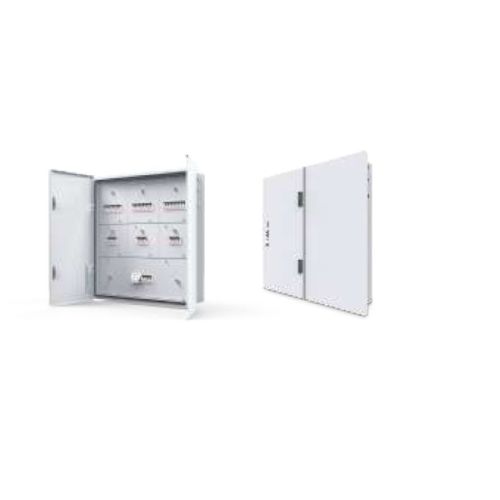

Goldmedal Air 8 Module 6 Way Double Door Distribution Board - 07097

Brand: Goldmedal
Product Code: Goldmedal-07097
Product Name: Goldmedal Air 8 Module 6 Way Double Door Distribution Board-07097
6 Way-Air DD (Metal) DB-IP43- TPN Phase Segregated- 7 Segment.
Conforms to IS 8623-1 and 3, IEC 61439-1 and 3 IP-43 and IK-09 for double door.
Suitable for Surface and Flush mounting.
Separate compartment for Incomer, Subincomer and Outgoing device.
Enclosure is made up of CRCA Sheet steel, RAL 9002 Powder coated, Ready to use DBs- includes 100A insulated Phase Bus-bar, Shrouded Neutral / Earth bar with Conditional short circuit Rating. This DB's kit includes high integrity accessories like Cement spill protector sheet, Colour-coded inter connecting wire set, Cable ties, Blank module, Sticking Saddles, Circuit identification labels.
There is a provision for-
1) Modular Incomer-FP MCB/Isolator as incomer, DP RCCB/RCBO as sub-incomer and SP MCBs as outgoings.
2) MCCB Incomer ���TP/FP MCCB as incomer, DP RCCB/RCBO as Sub-incomer and SP MCBs as outgoings.
Series: Air
Color: White
